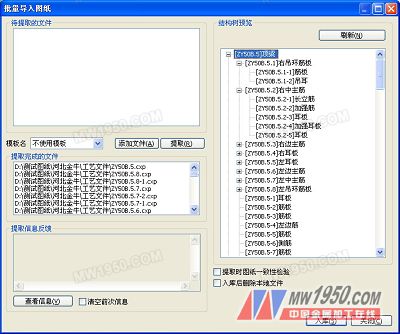

Figure bulk warehousing tool
When batching into the warehouse, the system can process hundreds of drawings at a time, automatically build a tree with parent-child assembly relationship according to the matching rules set by the figure number, and automatically identify the self-made parts, purchased parts, according to the matching rules. Information such as standard parts. According to the unique principle of the figure number, the system can automatically form a borrowing relationship when the batch is put into storage.
The above batch storage is not only suitable for 2D drawings, but also for 3D models. For 3D models, batch inbound processing requires more information, including external reference relationships between assemblies and parts, relationships between 3D models and corresponding 2D drawings.
6.2 coding tools
The coding tool is a running tool that is independent of the collaborative platform. The code generated by the tool can be collaborative management call and directly inserted into the material code, drawing code and other columns of the collaborative management system or CAD tool. The main functions of the coding tool are two parts: rule definition and code generation.
1: Rule definition
Rules can be added by item within the tool. Add a field to the rule you just added to add a field to the rule, and then define the properties of the field.

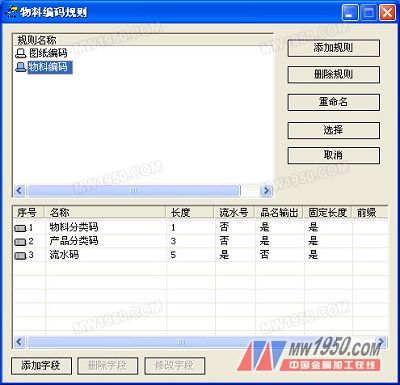

Graph encoding rule definer
2: Code generation
A code generation wizard is provided to generate a code that conforms to the rules according to the coding rules, and the system automatically guarantees the uniqueness of the code. In the code generation tool, the existing code query function is also provided, and the existing code can be queried from the code base.
7. Summary
CAXA collaborative management is a software product with full independent copyright of CAXA. It has a unified system architecture, flexible definition of data model and application interface, and can adapt to the needs of data management applications in various industries.
For CAXA diagram document users, you can choose to upgrade to CAXA collaborative management platform; for SMEs who plan to implement product data management, you can still start from the diagram document; for enterprises with relatively good foundation, you can directly plan to deploy CAXA collaborative management. platform. In different application environments, CAXA offers a variety of technology routes for corporate customers.
