1. The gas pipeline should be laid along the wall surface of non-combustible materials. When meeting with other pipelines, it should meet the following requirements:
(1) When laying horizontally parallel, the net distance should not be less than 150mm;
(2) When laying in parallel vertical direction, the net distance should not be less than 100mm, and it should be located on the outside of other pipes;
(3) When cross-laying, the net distance should not be less than 50mm.
2. Special circumstances When the indoor gas pipeline must pass through the bathroom, toilet, ceiling (vertical wear) and living room, the pipeline should have no interface.
3, indoor gas pipe should not cross below the bucket. When it is necessary to cross, additional casing should be installed. The diameter of the casing pipe should be larger than that of the gas pipe. The gas pipe and the casing should have no interface. Both ends of the casing should extend 20 to 20 mm from the side of the water bucket.
4. The tightness test shall be made after the installation of the gas pipeline. The test pressure shall be 300mm water column, and the pressure shall not fall to be qualified within 3 minutes.
5, burning appliances and electric meters, electrical equipment should be set in the wrong position, the level of the net distance must not be less than 500mm. When it can not be dislocated, there should be thermal protection measures.
6. Fireproof measures must be taken when the wall surface of the burning appliance is in wood or other flammable materials.
7. The distance between the sides of various types of burning appliances and walls, buckets, door frames, etc. and the distance between burning appliances and burning appliances should not be less than 200mm. When the two burning appliances or a burning appliance and water bucket are arranged at right angles, the sum of the two sides of the inlet and outlet walls shall not be less than 1.2m.
Construction acceptance bathroom layout appliance toilet door
Guanyu Mosaic Tile are high-quality products. Different mosaic tiles have different unique patterns and colors. They are environmental protective and have very low water absorption.

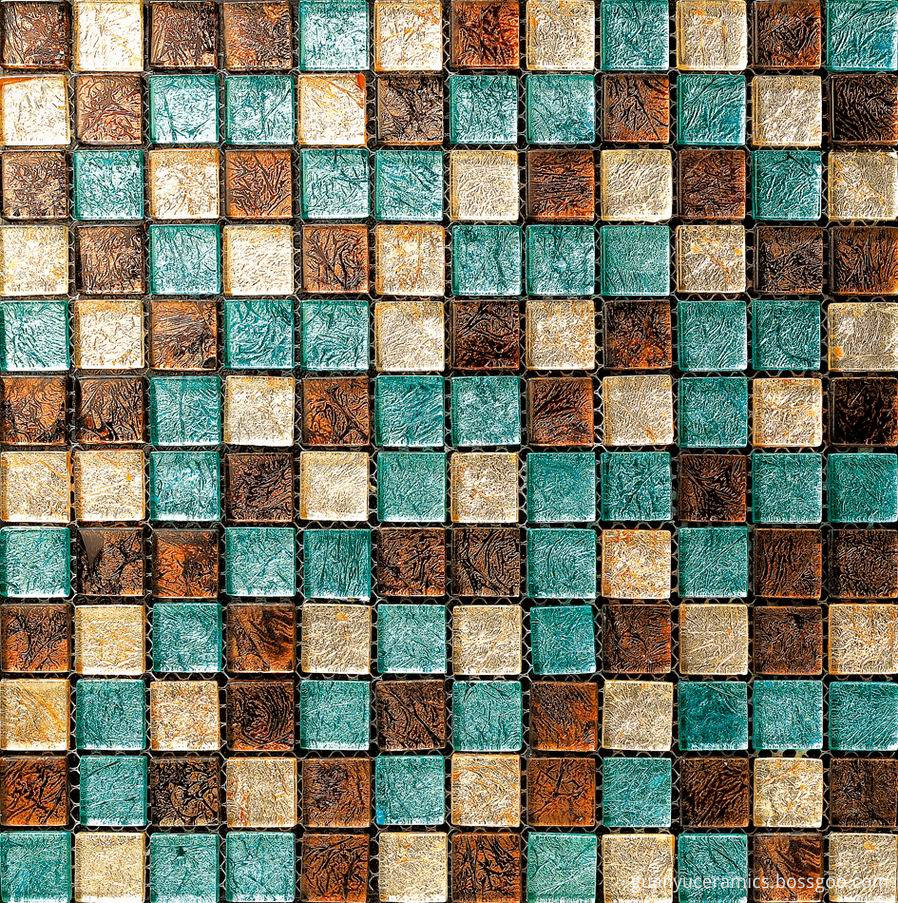

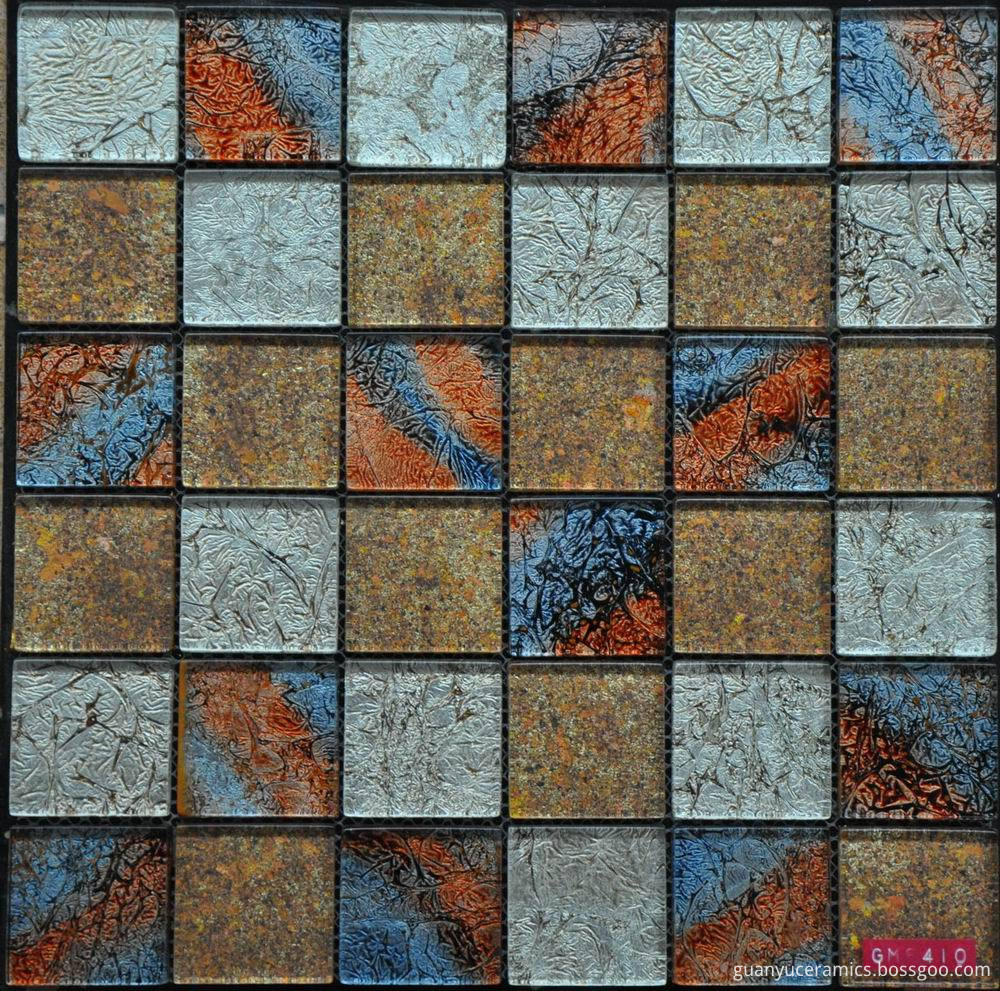

Luxury Golden Foil Mosaic Tile / Elegance Golden Foil Glass Mosaic Tile / High Quality Crystal Glass Mosaic Tile
Glass Mosaic Characteristic:
1) Suitable for inside and outside walls and similar applications.
2) Can be applied as complete sheets or in small sections to decorative borders or trims with other tiled surfaces.
3) Resistant to fading, staining and discoloration, easy to clean and install.
4) Acid-resistant and Alkali-resistant, high and low temperature resistance.
5) Waterproof and durable.
6) No radiation, eco-friendly.
7) Available in different size, color and design.
Glass Mosaic is suitable for various construction and high-end decoration. It is widely used in these areas.
Home/Villa: Sitting Room, Bedroom, Kitchen, Bathroom, Balcony, TV Background wall.
Entertainment: Senior club, KTV, Cafe, Swimming Pool, Hotel.
Public Places: Shopping Center, Stores, The Station, etc.
Installtion Instructions
1. Prepartion of the wall surfaces
Make sure the wall surface to be smooth, flat, solid, dry and perfectly clean, we suggest creating a white base-about 2mm
2. Perpartion for laying
Score lines on the surface to help the sheet posited correctly.
3. Laying
Using the straight of a trowel spres out the adhesive unformly on the wall, make sure the adhesive all the surface, one time should be no more than 1sqm.
A. Mosaic mounted on paper
Install the mosaic sheets with the paper side facing towards you and then using rubber float to ensure perfecet adhesion. Wet the paper with a damp
sponge and then remove it gently. Take out of any excess adhesive before it dries by a small spatula.
B. Mosaic mounted on mest
Press the fiberglass mesh backing directly into the adhesive.
4. Grouting
Using a grout for particular care. For paper faced mosaic, ensure that tiles are thoroughly cleaned and spread the grout using a rubber float. Make sure no
more than 2sqm of area at a time, and then leave the grout drying.
5. Cleaning
Using a damp sponge to remove any grout.
6. Cutting glass mosaic
Using mosaic nippers cut tile by tile.
Using a cutter for cutting the whole sheet.
7. Maintenance
Using normal neutral detergents for daily cleaning;
Using a slightly acidic detergent for special cleaning.
Why Guanyu Mosaic?
Guanyu Mosaic, specializing in making mosaics, polished tiles, rustic tiles and glazed internal wall tiles, makes our brand "Guanyu Ceramics" popular around the world and established worldwide distribution Channels in many countries and areas under the support of many clients.
We will supply you:
- Good Quality:
We got ISO9001:2000, ISO14001:2004, GB/T28001-2001 certificate, compulsory 3C certificate and strictly carries out their standard systems. And our inspection deptment supervise all the goods and it makes the goods are what your expected.
- Reasonable Price:
Our reasonable price will help you to enlarge your market.
- 10 years tiles exporting experience:
Over 10 years of exporting experience on tiles guarantee that all the steps of exporting can goes smoothly and it saves your time and money of getting goods.
- Meet Your Needs:
If your requirement go beyond our tiles, please contact us with your tiles designs. We are always happy to discuss your needs.
Please feel free to contact us any time if you are interested, thank you!
